diaedge
S-DDUNL-284-C
Skip to product information

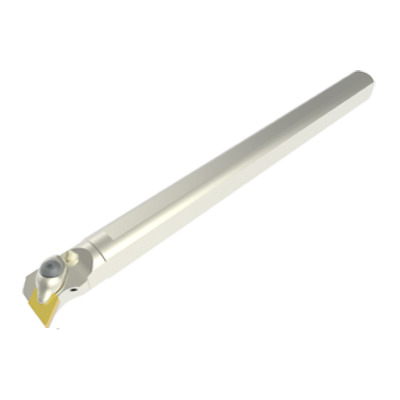

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

429608

ANSI

S-DDUNL-284-C

ISO

S-DDUNL-284-C

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)

11

Regular price $652.51 USD
Regular price Sale price $652.51 USD
Sale

EDP

429608

ANSI

S-DDUNL-284-C

ISO

S-DDUNL-284-C

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
S-DDUNL-284-C
Coolant
Internal
Hand
Left

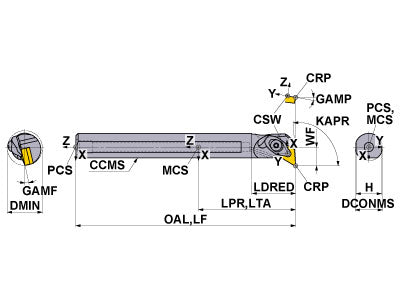

Unit: inch

H
1.632
DCONMS
1.75
LF
14
WF
1.25
LDRED
2.5
GAMF
9
GAMP
-6
DMIN
2.5
KAPR
93
S-DDUNL-284-C

Unit: inch

H
1.632
DCONMS
1.75
LF
14
WF
1.25
LDRED
2.5
GAMF
9
GAMP
-6
DMIN
2.5
KAPR
93

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
LLP24 223554 LLP24
inventory mark
$1.10
DC0621T 388560 DC0621T
inventory mark
$10.58
DCS1 151511 DCS1
inventory mark
$1.84
TKY20F 106904 TKY20F
inventory mark
$5.32
DCK2613 389052 DCK2613
inventory mark
$18.22
LLSDN43 102697 LLSDN43
inventory mark
$29.98
