diaedge
S-DDUNR-284-C
Skip to product information

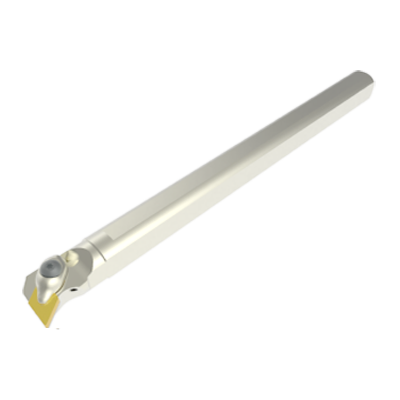

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

429616

ANSI

S-DDUNR-284-C

ISO

S-DDUNR-284-C

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)

9

Regular price $604.18 USD
Regular price Sale price $604.18 USD
Sale

EDP

429616

ANSI

S-DDUNR-284-C

ISO

S-DDUNR-284-C

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

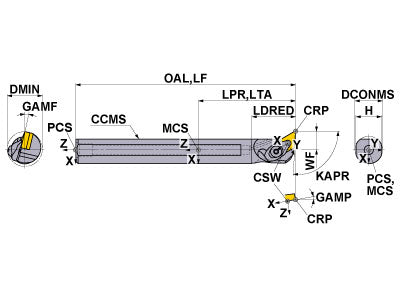

  • Drawings
  • Technical Information
S-DDUNR-284-C
Coolant
Internal
Hand
Right

Unit: inch

H
1.632
DCONMS
1.75
LF
14
WF
1.25
LDRED
2.5
GAMF
9
GAMP
-6
DMIN
2.5
KAPR
93
S-DDUNR-284-C

Unit: inch

H
1.632
DCONMS
1.75
LF
14
WF
1.25
LDRED
2.5
GAMF
9
GAMP
-6
DMIN
2.5
KAPR
93
