S-DTFNR-244-C
print open mailer

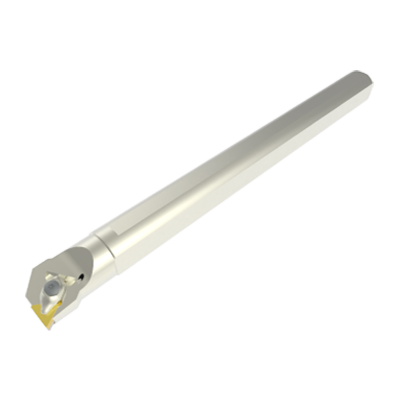

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

429739

ANSI

S-DTFNR-244-C

ISO

S-DTFNR-244-C

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)

Stock
5

Price
$696.43 USD
$696.43 USD
Sale

EDP

429739

ANSI

S-DTFNR-244-C

ISO

S-DTFNR-244-C

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

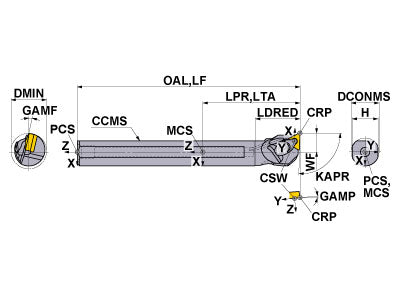

  • Drawings
  • Technical Information
S-DTFNR-244-C
Coolant
Internal
Hand
Right

Unit: mm

H
35.1
DCONMS
38.1
LF
355.6
WF
22.63
LDRED
50.8
GAMF
12
GAMP
-6
DMIN
45.263
KAPR
91
S-DTFNR-244-C

Unit: mm

H
35.1
DCONMS
38.1
LF
355.6
WF
22.63
LDRED
50.8
GAMF
12
GAMP
-6
DMIN
45.263
KAPR
91


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
DC0621T 388560 DC0621T
inventory mark
$14.81
DCS1 151511 DCS1
inventory mark
$2.70
TKY20F 106904 TKY20F
inventory mark
$7.77
LLSTN42 102707 LLSTN42
inventory mark
$24.07
LLP14 102688 LLP14
inventory mark
$1.61
DCK2613 389052 DCK2613
inventory mark
$20.65
