EDP
430115
ANSI
DTGNL-204
ISO
DTGNL-204




Stock
9
Price
Regular price
$198.61 USD
Regular price
Sale price
$198.61 USD
Unit price
/
per
EDP
430115
ANSI
DTGNL-204
ISO
DTGNL-204




Change the number in sums of 1s.
Couldn't load pickup availability


- Dimensions
- Features
- Drawings
- Technical Information

Coolant
External
Hand
Left

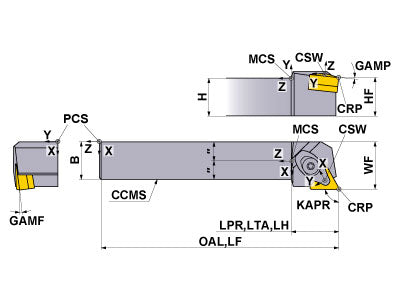

Unit: inch
H
1.25
B
1.25
LF
6.0
LH
1.25
HF
1.25
WF
1.5
GAMF
6
GAMP
-6
KAPR
91

Unit: inch
H
1.25
B
1.25
LF
6.0
LH
1.25
HF
1.25
WF
1.5
GAMF
6
GAMP
-6
KAPR
91
New double clamp type.
Holds inserts securely.
Excellent cutting edge tolerance.
Economical negative insert.
Recommended with CBN grade insert.
2D Model (DXF)
3D Model (STP)
Select files to download
