EDP
430131
ANSI
DTGNL-244
ISO
DTGNL-244




Stock
6
Price
Regular price
$283.68 USD
Regular price
Sale price
$283.68 USD
Unit price
/
per
EDP
430131
ANSI
DTGNL-244
ISO
DTGNL-244




Change the number in sums of 1s.
Couldn't load pickup availability

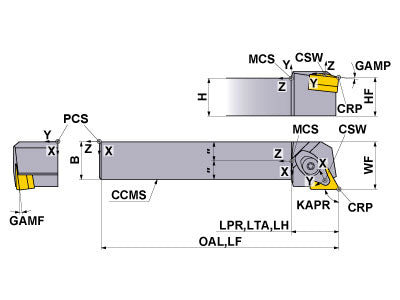

- Dimensions
- Features
- Drawings
- Technical Information

Coolant
External
Hand
Left
Unit: inch
H
1.5
B
1.5
LF
6.0
LH
1.25
HF
1.5
WF
2
GAMF
6
GAMP
-6
KAPR
91

Unit: inch
H
1.5
B
1.5
LF
6.0
LH
1.25
HF
1.5
WF
2
GAMF
6
GAMP
-6
KAPR
91
New double clamp type.
Holds inserts securely.
Excellent cutting edge tolerance.
Economical negative insert.
Recommended with CBN grade insert.
2D Model (DXF)
3D Model (STP)
Select files to download
