DVJNL-203
Skip to product information

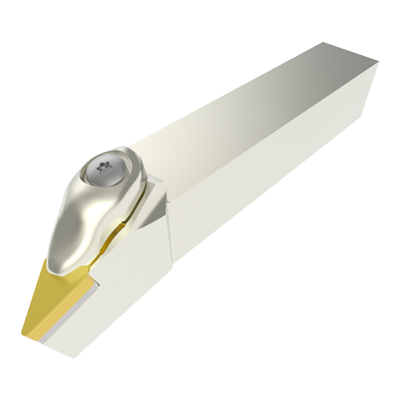

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

430158

ANSI

DVJNL-203

ISO

DVJNL-203

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)

11

Regular price $234.51 USD
Regular price Sale price $234.51 USD
Sale

EDP

430158

ANSI

DVJNL-203

ISO

DVJNL-203

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

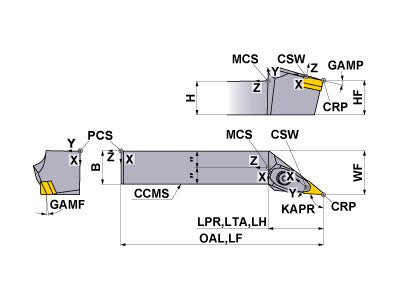

  • Drawings
  • Technical Information
DVJNL-203
Coolant
External
Hand
Left

Unit: inch

H
1.25
B
1.25
LF
6.0
LH
1.625
HF
1.25
WF
1.5
GAMF
6
GAMP
-13
KAPR
93
DVJNL-203

Unit: inch

H
1.25
B
1.25
LF
6.0
LH
1.625
HF
1.25
WF
1.5
GAMF
6
GAMP
-13
KAPR
93
