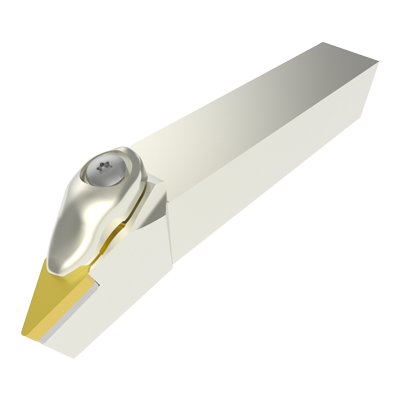

The actual product may differ from the displayed image.
The actual product may differ from the displayed image.
EDP
430166
ANSI
DVJNR-203
ISO
DVJNR-203
Stock
11
Price
Regular price
$234.51 USD
Regular price
Sale price
$234.51 USD
Unit price
/
per
EDP
430166
ANSI
DVJNR-203
ISO
DVJNR-203
Change the number in sums of 1s.
- Dimensions
- Features

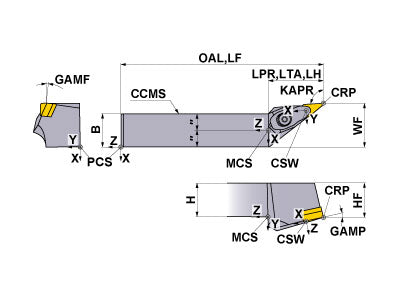

- Drawings
- Technical Information
Coolant
External
Hand
Right
Unit: inch
H
1.25
B
1.25
LF
6.0
LH
1.625
HF
1.25
WF
1.5
GAMF
6
GAMP
-13
KAPR
93
Unit: inch
H
1.25
B
1.25
LF
6.0
LH
1.625
HF
1.25
WF
1.5
GAMF
6
GAMP
-13
KAPR
93
New double clamp type.
Holds inserts securely.
Excellent cutting edge tolerance.
Economical negative insert.
Recommended with CBN grade insert.
2D Model (DXF)
3D Model (STP)
Select files to download
