SRM210SAS2
Skip to product information

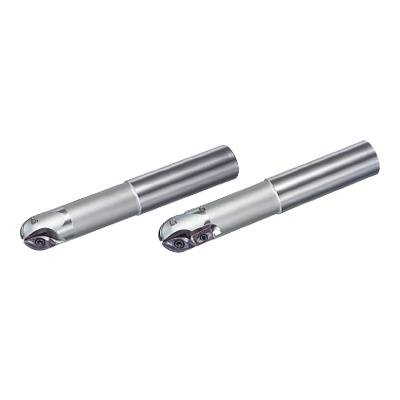

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

433906

ANSI

SRM210SAS2

ISO

SRM210SAS2

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
R_r Accuracy_roughing Corner_Radius Slot_Milling_+R Accuracy_3D milling

44

Regular price $399.11 USD
Regular price Sale price $399.11 USD
Sale

EDP

433906

ANSI

SRM210SAS2

ISO

SRM210SAS2

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
R_r Accuracy_roughing Corner_Radius Slot_Milling_+R Accuracy_3D milling
View full details
  • Dimensions
  • Features

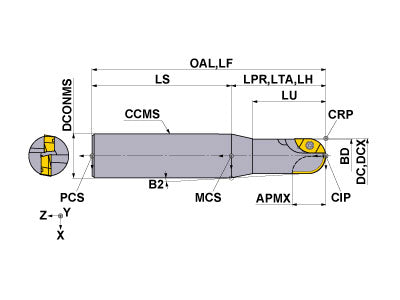

  • Drawings
  • Technical Information
SRM210SAS2
Coolant
Internal
Hand
Right

Unit: inch

DC
0.625
DCX
0.625
LF
4
APMX
0.625
LH
1.5
OAL
4
DCONMS
0.75
NOF
2
ZEFF
2
ZEFP
2
SRM210SAS2

Unit: inch

DC
0.625
DCX
0.625
LF
4
APMX
0.625
LH
1.5
OAL
4
DCONMS
0.75
NOF
2
ZEFF
2
ZEFP
2

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TS25H 352874 TS25H
inventory mark
$2.96
TKY08D 106895 TKY08D
inventory mark
$14.00
