CPMH090302-SV NX3035
Skip to product information

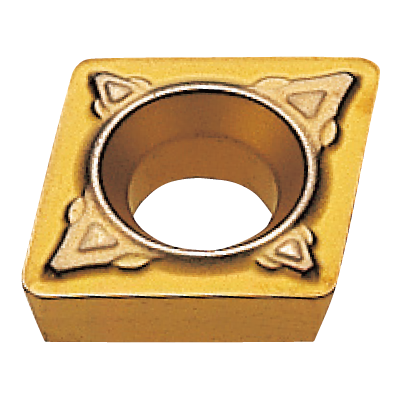

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

437245

ANSI

CPMH320.5SV NX3035

ISO

CPMH090302-SV NX3035

P (Steel)

1600

Regular price $15.66 USD
Regular price Sale price $15.66 USD
Sale

EDP

437245

ANSI

CPMH320.5SV NX3035

ISO

CPMH090302-SV NX3035

P (Steel)
View full details
  • Dimensions

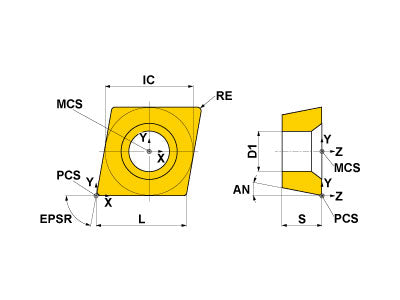

  • Drawings
  • Technical Information
CPMH090302-SV NX3035
Hand
Neutral

Unit: mm

TC
M
CNC
2
EPSR
80
IC
9.525
S
3.18
AN
11
RE
0.2
L
9.67
CPMH090302-SV NX3035

Unit: mm

TC
M
CNC
2
EPSR
80
IC
9.525
S
3.18
AN
11
RE
0.2
L
9.67
