diaedge
VF3XBR0050T0024L010
Skip to product information

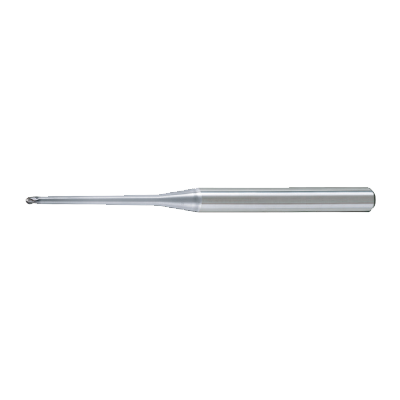

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

450706

ANSI

VF-3XB/0.5RX024X10

ISO

VF3XBR0050T0024L010

P (Steel) K (Cast Iron) H (Hard material)

1

Regular price $70.05 USD
Regular price Sale price $70.05 USD
Sale

EDP

450706

ANSI

VF-3XB/0.5RX024X10

ISO

VF3XBR0050T0024L010

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features

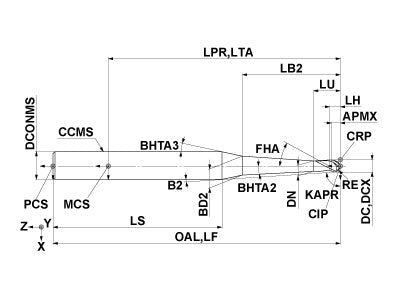

  • Drawings
  • Technical Information
VF3XBR0050T0024L010
Coolant
External
Hand
Right

Unit: mm

DC
1
APMX
0.8
LU
2.3
LB2
10
LH
0.83
OAL
60
DN
0.94
DCONMS
6
BHTA2
0.4
BHTA3
20
RE
0.5
FHA
30
ZEFP
3
ZEFF
3
VF3XBR0050T0024L010

Unit: mm

DC
1
APMX
0.8
LU
2.3
LB2
10
LH
0.83
OAL
60
DN
0.94
DCONMS
6
BHTA2
0.4
BHTA3
20
RE
0.5
FHA
30
ZEFP
3
ZEFF
3
