diaedge
VF3XBR0075T0024L010
Skip to product information

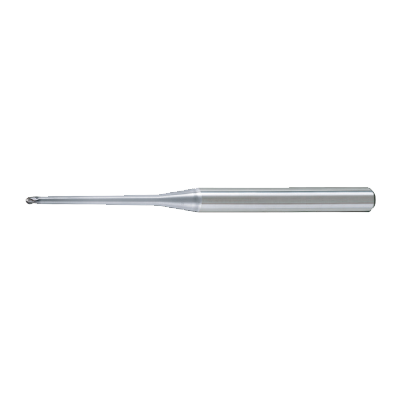

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

450941

ANSI

VF-3XB/0.75RX024X10

ISO

VF3XBR0075T0024L010

P (Steel) K (Cast Iron) H (Hard material)

2

Regular price $75.65 USD
Regular price Sale price $75.65 USD
Sale

EDP

450941

ANSI

VF-3XB/0.75RX024X10

ISO

VF3XBR0075T0024L010

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
VF3XBR0075T0024L010
Coolant
External
Hand
Right

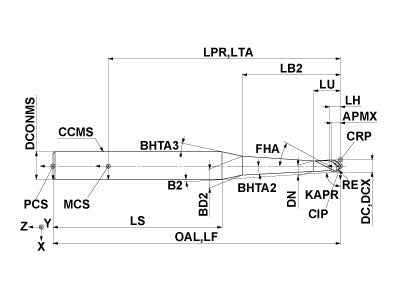

Unit: mm

DC
1.5
APMX
1.3
LU
2.8
LB2
10
LH
1.33
OAL
60
DN
1.44
DCONMS
6
BHTA2
0.4
BHTA3
20
RE
0.75
FHA
30
ZEFP
3
ZEFF
3
VF3XBR0075T0024L010

Unit: mm

DC
1.5
APMX
1.3
LU
2.8
LB2
10
LH
1.33
OAL
60
DN
1.44
DCONMS
6
BHTA2
0.4
BHTA3
20
RE
0.75
FHA
30
ZEFP
3
ZEFF
3
