diaedge
VF3XBR0075T0024L020
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

450968

ANSI

VF-3XB/0.75RX024X20

ISO

VF3XBR0075T0024L020

P (Steel) K (Cast Iron) H (Hard material)

1

Regular price $83.53 USD
Regular price Sale price $83.53 USD
Sale

EDP

450968

ANSI

VF-3XB/0.75RX024X20

ISO

VF3XBR0075T0024L020

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features

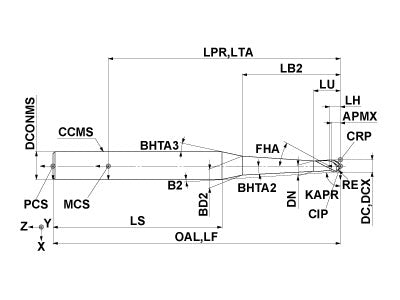

  • Drawings
  • Technical Information
VF3XBR0075T0024L020
Coolant
External
Hand
Right

Unit: mm

DC
1.5
APMX
1.3
LU
2.8
LB2
20
LH
1.33
OAL
70
DN
1.44
DCONMS
6
BHTA2
0.4
BHTA3
20
RE
0.75
FHA
30
ZEFP
3
ZEFF
3
VF3XBR0075T0024L020

Unit: mm

DC
1.5
APMX
1.3
LU
2.8
LB2
20
LH
1.33
OAL
70
DN
1.44
DCONMS
6
BHTA2
0.4
BHTA3
20
RE
0.75
FHA
30
ZEFP
3
ZEFF
3
