EDP

450984

ANSI

VF-3XB/0.75RX054X15

ISO

VF3XBR0075T0054L015

P (Steel) K (Cast Iron) H (Hard material)

20

Regular price $90.21 USD
Regular price Sale price $90.21 USD
Sale

EDP

450984

ANSI

VF-3XB/0.75RX054X15

ISO

VF3XBR0075T0054L015

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features

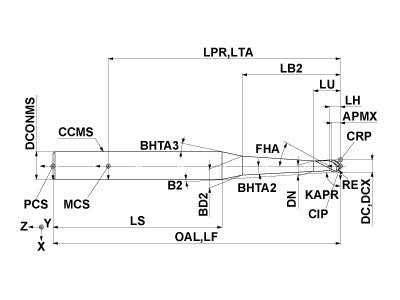

  • Drawings
  • Technical Information
VF3XBR0075T0054L015
Coolant
External
Hand
Right

Unit: mm

DC
1.5
APMX
1.3
LU
2.8
LB2
15
LH
1.33
OAL
60
DN
1.44
DCONMS
6
BHTA2
0.9
BHTA3
20
RE
0.75
FHA
30
ZEFP
3
ZEFF
3
VF3XBR0075T0054L015

Unit: mm

DC
1.5
APMX
1.3
LU
2.8
LB2
15
LH
1.33
OAL
60
DN
1.44
DCONMS
6
BHTA2
0.9
BHTA3
20
RE
0.75
FHA
30
ZEFP
3
ZEFF
3
