EDP
451012
ANSI
VF-3XB/0.75RX054X40
ISO
VF3XBR0075T0054L040



Stock
1
Price
Regular price
$138.10 USD
Regular price
Sale price
$138.10 USD
Unit price
/
per
EDP
451012
ANSI
VF-3XB/0.75RX054X40
ISO
VF3XBR0075T0054L040



Change the number in sums of 1s.
Couldn't load pickup availability


- Dimensions
- Features

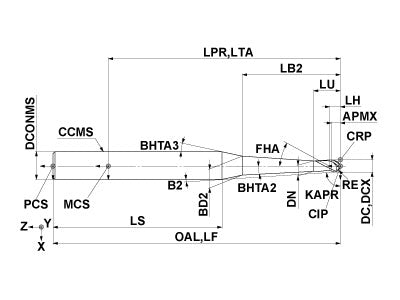

- Drawings
- Technical Information

Coolant
External
Hand
Right
Unit: mm
DC
1.5
APMX
1.3
LU
2.8
LB2
40
LH
1.33
OAL
80
DN
1.44
DCONMS
6
BHTA2
0.9
BHTA3
20
RE
0.75
FHA
30
ZEFP
3
ZEFF
3

Unit: mm
DC
1.5
APMX
1.3
LU
2.8
LB2
40
LH
1.33
OAL
80
DN
1.44
DCONMS
6
BHTA2
0.9
BHTA3
20
RE
0.75
FHA
30
ZEFP
3
ZEFF
3

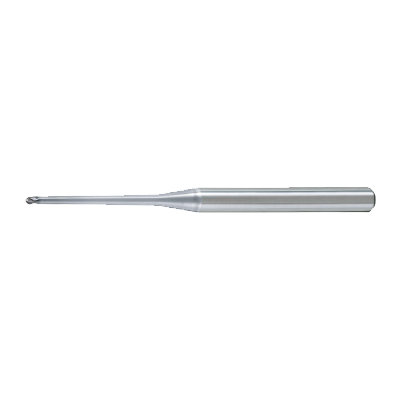

3 flute ball end mill, high rigidity taper neck type.
2D Model (DXF)
3D Model (STP)
