EDP
451055
ANSI
VF-3XB/1RX024X16
ISO
VF3XBR0100T0024L016



Stock
79
Price
Regular price
$75.65 USD
Regular price
Sale price
$75.65 USD
Unit price
/
per
EDP
451055
ANSI
VF-3XB/1RX024X16
ISO
VF3XBR0100T0024L016



Change the number in sums of 1s.
Couldn't load pickup availability


- Dimensions
- Features

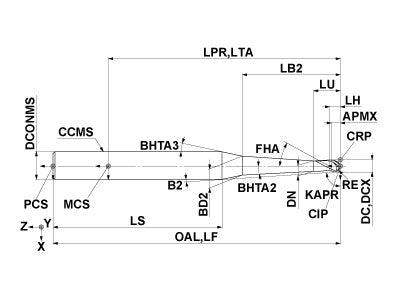

- Drawings
- Technical Information

Coolant
External
Hand
Right
Unit: mm
DC
2
APMX
1.6
LU
3.6
LB2
16
LH
1.65
OAL
70
DN
1.9
DCONMS
6
BHTA2
0.4
BHTA3
20
RE
1
FHA
30
ZEFP
3
ZEFF
3

Unit: mm
DC
2
APMX
1.6
LU
3.6
LB2
16
LH
1.65
OAL
70
DN
1.9
DCONMS
6
BHTA2
0.4
BHTA3
20
RE
1
FHA
30
ZEFP
3
ZEFF
3

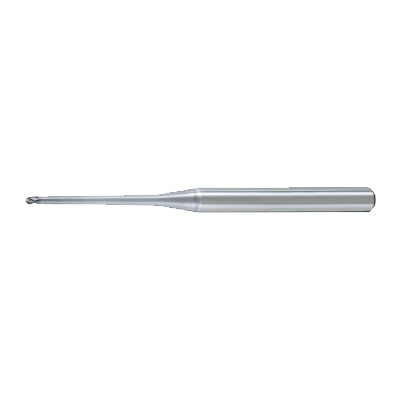

3 flute ball end mill, high rigidity taper neck type.
2D Model (DXF)
3D Model (STP)
