VF3XBR0100T0054L035
Skip to product information

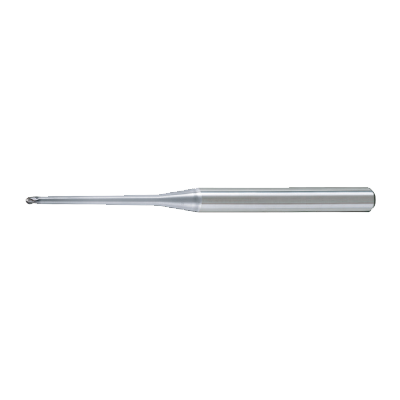

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

451143

ANSI

VF-3XB/1RX054X35

ISO

VF3XBR0100T0054L035

P (Steel) K (Cast Iron) H (Hard material)

5

Regular price $119.89 USD
Regular price Sale price $119.89 USD
Sale

EDP

451143

ANSI

VF-3XB/1RX054X35

ISO

VF3XBR0100T0054L035

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features

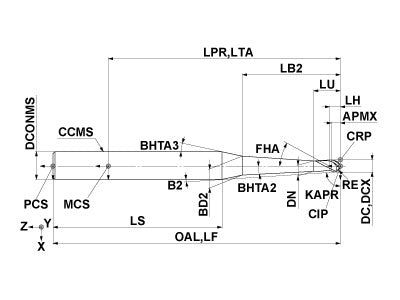

  • Drawings
  • Technical Information
VF3XBR0100T0054L035
Coolant
External
Hand
Right

Unit: mm

DC
2
APMX
1.6
LU
3.6
LB2
35
LH
1.65
OAL
80
DN
1.9
DCONMS
6
BHTA2
0.9
BHTA3
20
RE
1
FHA
30
ZEFP
3
ZEFF
3
VF3XBR0100T0054L035

Unit: mm

DC
2
APMX
1.6
LU
3.6
LB2
35
LH
1.65
OAL
80
DN
1.9
DCONMS
6
BHTA2
0.9
BHTA3
20
RE
1
FHA
30
ZEFP
3
ZEFF
3
