diaedge
VF3XBR0150T0024L025
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

451303

ANSI

VF-3XB/1.5RX024X25

ISO

VF3XBR0150T0024L025

P (Steel) K (Cast Iron) H (Hard material)

12

Regular price $104.90 USD
Regular price Sale price $104.90 USD
Sale

EDP

451303

ANSI

VF-3XB/1.5RX024X25

ISO

VF3XBR0150T0024L025

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
VF3XBR0150T0024L025
Coolant
External
Hand
Right

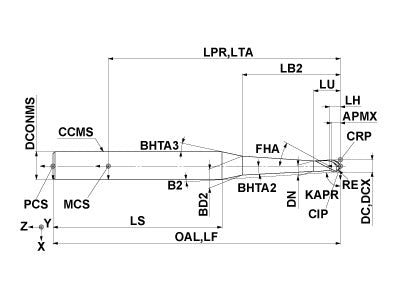

Unit: mm

DC
3
APMX
2
LU
5
LB2
25
LH
2.05
OAL
80
DN
2.9
DCONMS
6
BHTA2
0.4
BHTA3
20
RE
1.5
FHA
30
ZEFP
3
ZEFF
3
VF3XBR0150T0024L025

Unit: mm

DC
3
APMX
2
LU
5
LB2
25
LH
2.05
OAL
80
DN
2.9
DCONMS
6
BHTA2
0.4
BHTA3
20
RE
1.5
FHA
30
ZEFP
3
ZEFF
3
