diaedge
VF3XBR0150T0054L020
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

451346

ANSI

VF-3XB/1.5RX054X20

ISO

VF3XBR0150T0054L020

P (Steel) K (Cast Iron) H (Hard material)

5

Regular price $98.40 USD
Regular price Sale price $98.40 USD
Sale

EDP

451346

ANSI

VF-3XB/1.5RX054X20

ISO

VF3XBR0150T0054L020

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features

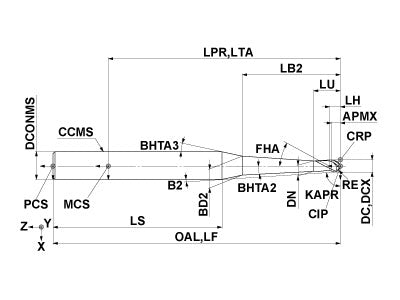

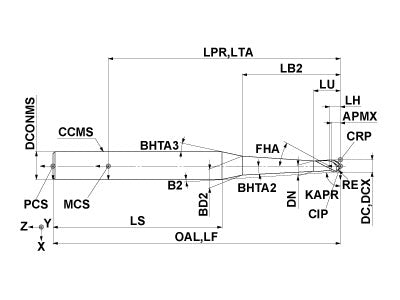

  • Drawings
  • Technical Information
VF3XBR0150T0054L020
Coolant
External
Hand
Right

Unit: mm

DC
3
APMX
2
LU
5
LB2
20
LH
2.05
OAL
60
DN
2.9
DCONMS
6
BHTA2
0.9
BHTA3
20
RE
1.5
FHA
30
ZEFP
3
ZEFF
3
VF3XBR0150T0054L020

Unit: mm

DC
3
APMX
2
LU
5
LB2
20
LH
2.05
OAL
60
DN
2.9
DCONMS
6
BHTA2
0.9
BHTA3
20
RE
1.5
FHA
30
ZEFP
3
ZEFF
3
