EDP
451389
ANSI
VF-3XB/1.5RX054X60
ISO
VF3XBR0150T0054L060
![P (Steel)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-P.png?v=100455598971133347731700003449)
![K (Cast Iron)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-K.png?v=179829309681585967941700003448)
![H (Hard material)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-H.png?v=152662001445288260811700003448)
Stock
1
Price
Regular price
$152.15 USD
Regular price
Sale price
$152.15 USD
Unit price
/
per
EDP
451389
ANSI
VF-3XB/1.5RX054X60
ISO
VF3XBR0150T0054L060
![P (Steel)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-P.png?v=100455598971133347731700003449)
![K (Cast Iron)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-K.png?v=179829309681585967941700003448)
![H (Hard material)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-H.png?v=152662001445288260811700003448)
Change the number in sums of 1s.
Couldn't load pickup availability
![VF3XBR0150T0054L060](http://mmusec.mmc-carbide.com/cdn/shop/files/MILBNSS_MI_VF3XB_MMSS_44983dbf-d681-4f80-94c4-6be9798ad17a.png?v=1725699182&width=1445)
![VF3XBR0150T0054L060](http://mmusec.mmc-carbide.com/cdn/shop/files/MILBNSS_MI_VF3XB_MMSS_1_5077ac91-6635-43ee-99c9-41d6f889b3ea.jpg?v=1725699183&width=1445)
- Dimensions
- Features

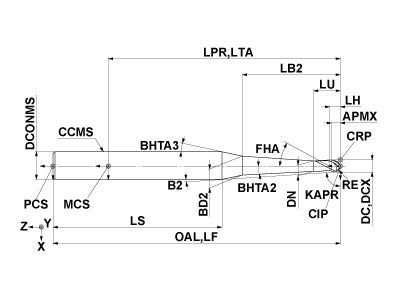

- Drawings
- Technical Information
![VF3XBR0150T0054L060](http://mmusec.mmc-carbide.com/cdn/shop/files/MILBNSS_MI_VF3XB_MMSS_1_5077ac91-6635-43ee-99c9-41d6f889b3ea.jpg?v=1725699183&width=416)
Coolant
External
Hand
Right
Unit: mm
DC
3
APMX
2
LU
5
LB2
60
LH
2.05
OAL
110
DN
2.9
DCONMS
8
BHTA2
0.9
BHTA3
20
RE
1.5
FHA
30
ZEFP
3
ZEFF
3
![VF3XBR0150T0054L060](http://mmusec.mmc-carbide.com/cdn/shop/files/MILBNSS_MI_VF3XB_MMSS_1_5077ac91-6635-43ee-99c9-41d6f889b3ea.jpg?v=1725699183&width=416)
Unit: mm
DC
3
APMX
2
LU
5
LB2
60
LH
2.05
OAL
110
DN
2.9
DCONMS
8
BHTA2
0.9
BHTA3
20
RE
1.5
FHA
30
ZEFP
3
ZEFF
3

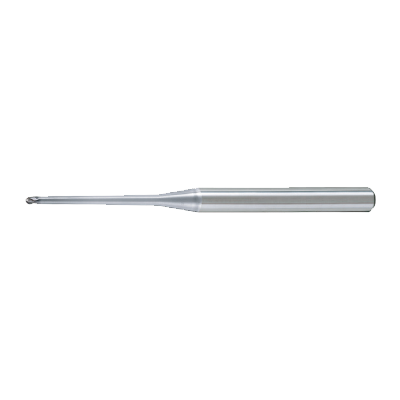

3 flute ball end mill, high rigidity taper neck type.
2D Model (DXF)
3D Model (STP)
