diaedge
VF3XBR0200T0054L040
Skip to product information

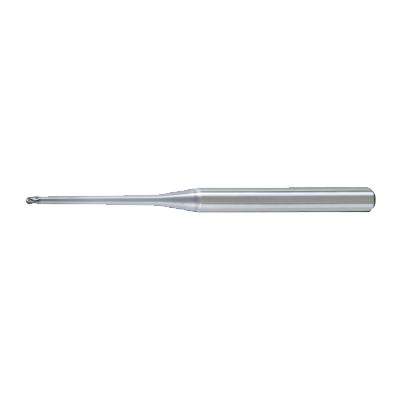

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

451451

ANSI

VF-3XB/2RX054X40

ISO

VF3XBR0200T0054L040

P (Steel) K (Cast Iron) H (Hard material)

3

Regular price $125.13 USD
Regular price Sale price $125.13 USD
Sale

EDP

451451

ANSI

VF-3XB/2RX054X40

ISO

VF3XBR0200T0054L040

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features

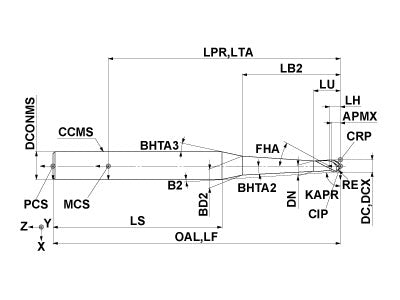

  • Drawings
  • Technical Information
VF3XBR0200T0054L040
Coolant
External
Hand
Right

Unit: mm

DC
4
APMX
3
LU
6
LB2
40
LH
3.05
OAL
90
DN
3.9
DCONMS
8
BHTA2
0.9
BHTA3
20
RE
2
FHA
30
ZEFP
3
ZEFF
3
VF3XBR0200T0054L040

Unit: mm

DC
4
APMX
3
LU
6
LB2
40
LH
3.05
OAL
90
DN
3.9
DCONMS
8
BHTA2
0.9
BHTA3
20
RE
2
FHA
30
ZEFP
3
ZEFF
3
