diaedge
VF3XBR0200T0054L050
Skip to product information

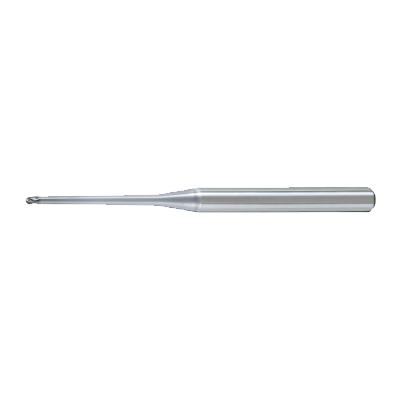

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

451469

ANSI

VF-3XB/2RX054X50

ISO

VF3XBR0200T0054L050

P (Steel) K (Cast Iron) H (Hard material)

5

Regular price $147.81 USD
Regular price Sale price $147.81 USD
Sale

EDP

451469

ANSI

VF-3XB/2RX054X50

ISO

VF3XBR0200T0054L050

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information

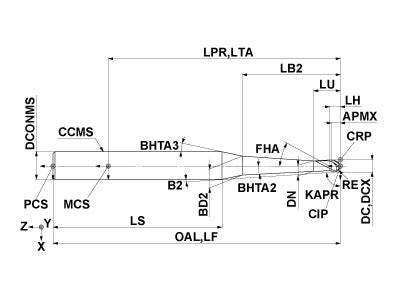

VF3XBR0200T0054L050
Coolant
External
Hand
Right

Unit: mm

DC
4
APMX
3
LU
6
LB2
50
LH
3.05
OAL
110
DN
3.9
DCONMS
8
BHTA2
0.9
BHTA3
20
RE
2
FHA
30
ZEFP
3
ZEFF
3
VF3XBR0200T0054L050

Unit: mm

DC
4
APMX
3
LU
6
LB2
50
LH
3.05
OAL
110
DN
3.9
DCONMS
8
BHTA2
0.9
BHTA3
20
RE
2
FHA
30
ZEFP
3
ZEFF
3
