diaedge
VF3XBR0200T0054L060
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

451477

ANSI

VF-3XB/2RX054X60

ISO

VF3XBR0200T0054L060

P (Steel) K (Cast Iron) H (Hard material)

10

Regular price $161.85 USD
Regular price Sale price $161.85 USD
Sale

EDP

451477

ANSI

VF-3XB/2RX054X60

ISO

VF3XBR0200T0054L060

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features

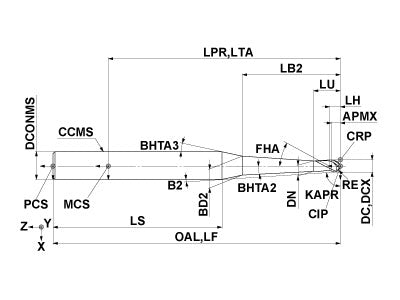

  • Drawings
  • Technical Information
VF3XBR0200T0054L060
Coolant
External
Hand
Right

Unit: mm

DC
4
APMX
3
LU
6
LB2
60
LH
3.05
OAL
110
DN
3.9
DCONMS
8
BHTA2
0.9
BHTA3
20
RE
2
FHA
30
ZEFP
3
ZEFF
3
VF3XBR0200T0054L060

Unit: mm

DC
4
APMX
3
LU
6
LB2
60
LH
3.05
OAL
110
DN
3.9
DCONMS
8
BHTA2
0.9
BHTA3
20
RE
2
FHA
30
ZEFP
3
ZEFF
3
