diaedge
VF3XBR0250T0054L035
Skip to product information

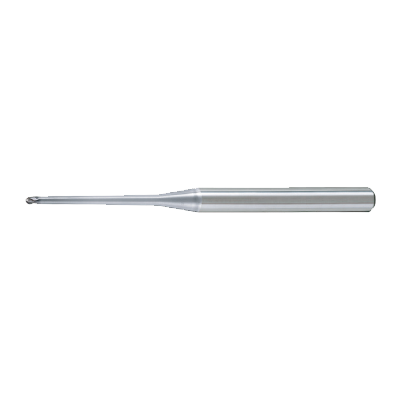

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

451485

ANSI

VF-3XB/2.5RX054X35

ISO

VF3XBR0250T0054L035

P (Steel) K (Cast Iron) H (Hard material)

1

Regular price $136.86 USD
Regular price Sale price $136.86 USD
Sale

EDP

451485

ANSI

VF-3XB/2.5RX054X35

ISO

VF3XBR0250T0054L035

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features

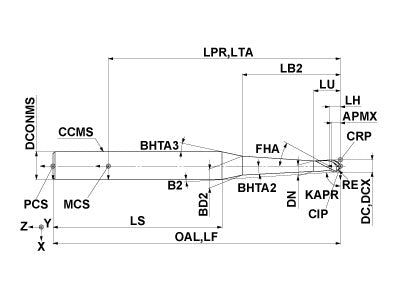

  • Drawings
  • Technical Information
VF3XBR0250T0054L035
Coolant
External
Hand
Right

Unit: mm

DC
5
APMX
3.5
LU
6.5
LB2
35
LH
3.55
OAL
90
DN
4.9
DCONMS
8
BHTA2
0.9
BHTA3
20
RE
2.5
FHA
30
ZEFP
3
ZEFF
3
VF3XBR0250T0054L035

Unit: mm

DC
5
APMX
3.5
LU
6.5
LB2
35
LH
3.55
OAL
90
DN
4.9
DCONMS
8
BHTA2
0.9
BHTA3
20
RE
2.5
FHA
30
ZEFP
3
ZEFF
3
