diaedge
MWS00210SB VP15TF
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

459401

ANSI

MWS00210SB VP15TF

ISO

MWS00210SB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

69

Regular price $107.36 USD
Regular price Sale price $107.36 USD
Sale

EDP

459401

ANSI

MWS00210SB VP15TF

ISO

MWS00210SB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

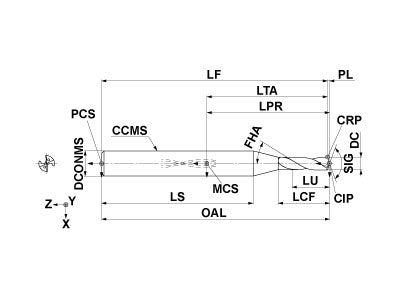

  • Drawings
  • Technical Information
MWS00210SB VP15TF
Coolant
Internal
Hand
Right

Unit: inch

DC
0.021
ULDR
1.0
LU
0.025
LCF
0.106
OAL
1.775
DCONMS
0.125
PL
0.004
SIG
140
FHA
25
DC Max
0.0004
DC Min
0
TCDCON
h6
ZEFF
2
MWS00210SB VP15TF

Unit: inch

DC
0.021
ULDR
1.0
LU
0.025
LCF
0.106
OAL
1.775
DCONMS
0.125
PL
0.004
SIG
140
FHA
25
DC Max
0.0004
DC Min
0
TCDCON
h6
ZEFF
2
