EDP
459591
ANSI
MWS00420SB VP15TF
ISO
MWS00420SB VP15TF
![P (Steel)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-P.png?v=100455598971133347731700003449)
![M (Stainless)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-M.png?v=180646633914269519611700003449)
![K (Cast Iron)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-K.png?v=179829309681585967941700003448)
![N (Non-Ferrous)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-N.png?v=159995307732735548301700003449)
![S (Heat-Resistant)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-S.png?v=30775661030167115161700003450)
Stock
29
Price
Regular price
$108.72 USD
Regular price
Sale price
$108.72 USD
Unit price
/
per
EDP
459591
ANSI
MWS00420SB VP15TF
ISO
MWS00420SB VP15TF
![P (Steel)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-P.png?v=100455598971133347731700003449)
![M (Stainless)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-M.png?v=180646633914269519611700003449)
![K (Cast Iron)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-K.png?v=179829309681585967941700003448)
![N (Non-Ferrous)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-N.png?v=159995307732735548301700003449)
![S (Heat-Resistant)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-S.png?v=30775661030167115161700003450)
Change the number in sums of 1s.
Couldn't load pickup availability
![MWS00420SB VP15TF](http://mmusec.mmc-carbide.com/cdn/shop/files/DRLFSS_MI_MWS_IISS_766b8350-7340-42e0-b311-53815a2c05cb.png?v=1724575053&width=1445)
![MWS00420SB VP15TF](http://mmusec.mmc-carbide.com/cdn/shop/files/DRLFSS_MI_MWS_IISS_1_4e42311e-1e48-4fd3-a595-e36973f3e163.jpg?v=1724575053&width=1445)
- Dimensions
- Features

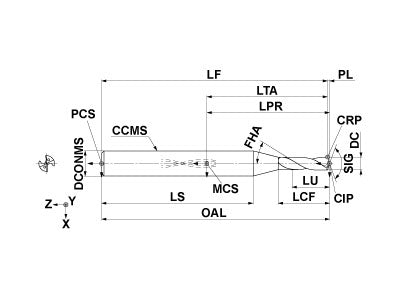

- Drawings
- Technical Information
![MWS00420SB VP15TF](http://mmusec.mmc-carbide.com/cdn/shop/files/DRLFSS_MI_MWS_IISS_1_4e42311e-1e48-4fd3-a595-e36973f3e163.jpg?v=1724575053&width=416)
Coolant
Internal
Hand
Right
Unit: inch
DC
0.042
ULDR
1.0
LU
0.05
LCF
0.212
OAL
2.173
DCONMS
0.125
PL
0.008
SIG
140
FHA
30
DC Max
0.0006
DC Min
0
TCDCON
h6
ZEFF
2
![MWS00420SB VP15TF](http://mmusec.mmc-carbide.com/cdn/shop/files/DRLFSS_MI_MWS_IISS_1_4e42311e-1e48-4fd3-a595-e36973f3e163.jpg?v=1724575053&width=416)
Unit: inch
DC
0.042
ULDR
1.0
LU
0.05
LCF
0.212
OAL
2.173
DCONMS
0.125
PL
0.008
SIG
140
FHA
30
DC Max
0.0006
DC Min
0
TCDCON
h6
ZEFF
2
For high accuracy and efficient drilling of steels, carbon steels and difficult-to-cut materials.
2D Model (DXF)
3D Model (STP)
