EDP

459727

ANSI

MWS00810SB VP15TF

ISO

MWS00810SB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

62

Regular price $100.67 USD
Regular price Sale price $100.67 USD
Sale

EDP

459727

ANSI

MWS00810SB VP15TF

ISO

MWS00810SB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

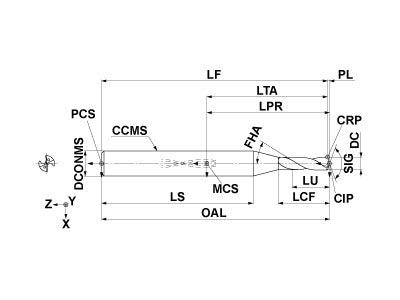

  • Drawings
  • Technical Information
MWS00810SB VP15TF
Coolant
Internal
Hand
Right

Unit: inch

DC
0.081
ULDR
1.0
LU
0.094
LCF
0.414
OAL
2.926
DCONMS
0.125
PL
0.013
SIG
145
FHA
30
DC Max
0.0006
DC Min
0
TCDCON
h6
ZEFF
2
MWS00810SB VP15TF

Unit: inch

DC
0.081
ULDR
1.0
LU
0.094
LCF
0.414
OAL
2.926
DCONMS
0.125
PL
0.013
SIG
145
FHA
30
DC Max
0.0006
DC Min
0
TCDCON
h6
ZEFF
2
