diaedge
MWS00960SB VP15TF
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

459760

ANSI

MWS00960SB VP15TF

ISO

MWS00960SB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

106

Regular price $108.72 USD
Regular price Sale price $108.72 USD
Sale

EDP

459760

ANSI

MWS00960SB VP15TF

ISO

MWS00960SB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details

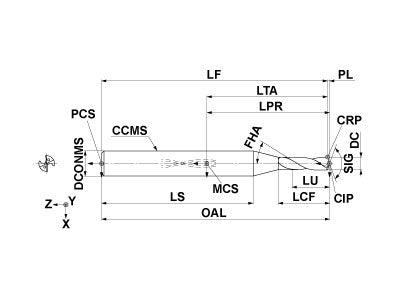

  • Dimensions
  • Features
  • Drawings
  • Technical Information
MWS00960SB VP15TF
Coolant
Internal
Hand
Right

Unit: inch

DC
0.096
ULDR
1.0
LU
0.111
LCF
0.495
OAL
2.929
DCONMS
0.125
PL
0.015
SIG
145
FHA
30
DC Max
0.0006
DC Min
0
TCDCON
h6
ZEFF
2
MWS00960SB VP15TF

Unit: inch

DC
0.096
ULDR
1.0
LU
0.111
LCF
0.495
OAL
2.929
DCONMS
0.125
PL
0.015
SIG
145
FHA
30
DC Max
0.0006
DC Min
0
TCDCON
h6
ZEFF
2
