MWS01010SB VP15TF
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

459778

ANSI

MWS01010SB VP15TF

ISO

MWS01010SB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

11

Regular price $100.67 USD
Regular price Sale price $100.67 USD
Sale

EDP

459778

ANSI

MWS01010SB VP15TF

ISO

MWS01010SB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

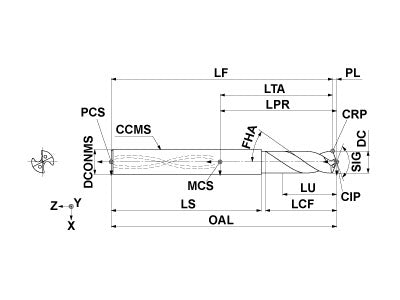

  • Drawings
  • Technical Information
MWS01010SB VP15TF
Coolant
Internal
Hand
Right

Unit: inch

DC
0.101
ULDR
1.0
LU
0.117
LCF
0.512
OAL
3.205
DCONMS
0.125
PL
0.016
SIG
145
FHA
30
DC Max
0.0006
DC Min
0
TCDCON
h6
ZEFF
2
MWS01010SB VP15TF

Unit: inch

DC
0.101
ULDR
1.0
LU
0.117
LCF
0.512
OAL
3.205
DCONMS
0.125
PL
0.016
SIG
145
FHA
30
DC Max
0.0006
DC Min
0
TCDCON
h6
ZEFF
2
