EDP
459962
ANSI
MWS0065SB VP15TF
ISO
MWS0065SB VP15TF
Stock
7
Price
Regular price
$115.95 USD
Regular price
Sale price
$115.95 USD
Unit price
/
per
EDP
459962
ANSI
MWS0065SB VP15TF
ISO
MWS0065SB VP15TF
Change the number in sums of 1s.
- Dimensions
- Features
- Drawings
- Technical Information
Coolant
Internal
Hand
Right

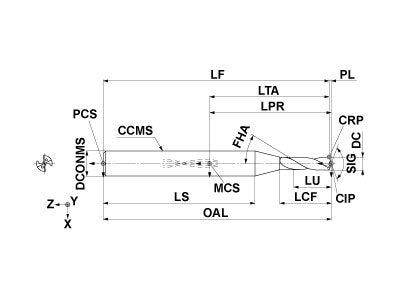

Unit: mm
DC
0.65
ULDR
1
LU
0.79
LCF
3.2
OAL
47.1
DCONMS
3
PL
0.1
SIG
140
FHA
25
DC Max
0.009
DC Min
0
TCDCON
h6
ZEFF
2
Unit: mm
DC
0.65
ULDR
1
LU
0.79
LCF
3.2
OAL
47.1
DCONMS
3
PL
0.1
SIG
140
FHA
25
DC Max
0.009
DC Min
0
TCDCON
h6
ZEFF
2
For high accuracy and efficient drilling of steels, carbon steels and difficult-to-cut materials.
2D Model (DXF)
3D Model (STP)
