diaedge
MWS0076SB VP15TF
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

460074

ANSI

MWS0076SB VP15TF

ISO

MWS0076SB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

5

Regular price $115.95 USD
Regular price Sale price $115.95 USD
Sale

EDP

460074

ANSI

MWS0076SB VP15TF

ISO

MWS0076SB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

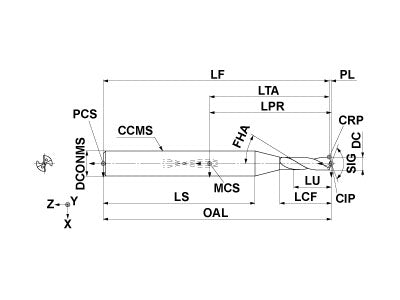

  • Drawings
  • Technical Information
MWS0076SB VP15TF
Coolant
Internal
Hand
Right

Unit: mm

DC
0.76
ULDR
1
LU
0.94
LCF
4
OAL
50.1
DCONMS
3
PL
0.1
SIG
140
FHA
25
DC Max
0.009
DC Min
0
TCDCON
h6
ZEFF
2
MWS0076SB VP15TF

Unit: mm

DC
0.76
ULDR
1
LU
0.94
LCF
4
OAL
50.1
DCONMS
3
PL
0.1
SIG
140
FHA
25
DC Max
0.009
DC Min
0
TCDCON
h6
ZEFF
2
