The actual product may differ from the displayed image.
The actual product may differ from the displayed image.
1
/
of
2
EDP
460242
ANSI
MWS0093SB VP15TF
ISO
MWS0093SB VP15TF





Stock
4
Price
Regular price
$115.95 USD
Regular price
Sale price
$115.95 USD
Unit price
/
per
EDP
460242
ANSI
MWS0093SB VP15TF
ISO
MWS0093SB VP15TF





Change the number in sums of 1s.
Couldn't load pickup availability


- Dimensions
- Features

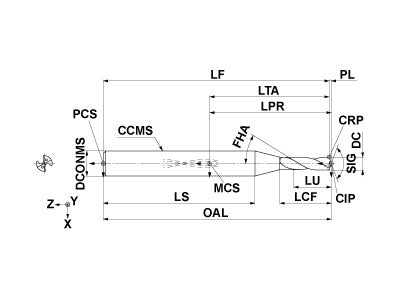

- Drawings
- Technical Information

Coolant
Internal
Hand
Right
Unit: mm
DC
0.93
ULDR
1
LU
1.07
LCF
4.8
OAL
50.2
DCONMS
3
PL
0.2
SIG
140
FHA
25
DC Max
0.009
DC Min
0
TCDCON
h6
ZEFF
2

Unit: mm
DC
0.93
ULDR
1
LU
1.07
LCF
4.8
OAL
50.2
DCONMS
3
PL
0.2
SIG
140
FHA
25
DC Max
0.009
DC Min
0
TCDCON
h6
ZEFF
2
For high accuracy and efficient drilling of steels, carbon steels and difficult-to-cut materials.
2D Model (DXF)
3D Model (STP)
Select files to download
