MWS0130SB VP15TF
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

460349

ANSI

MWS0130SB VP15TF

ISO

MWS0130SB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

160

Regular price $100.67 USD
Regular price Sale price $100.67 USD
Sale

EDP

460349

ANSI

MWS0130SB VP15TF

ISO

MWS0130SB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

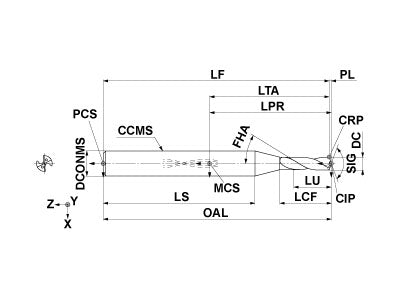

  • Drawings
  • Technical Information
MWS0130SB VP15TF
Coolant
Internal
Hand
Right

Unit: mm

DC
1.3
ULDR
1
LU
1.54
LCF
6.6
OAL
55.2
DCONMS
3
PL
0.2
SIG
140
FHA
30
DC Max
0.014
DC Min
0
TCDCON
h6
ZEFF
2
MWS0130SB VP15TF

Unit: mm

DC
1.3
ULDR
1
LU
1.54
LCF
6.6
OAL
55.2
DCONMS
3
PL
0.2
SIG
140
FHA
30
DC Max
0.014
DC Min
0
TCDCON
h6
ZEFF
2
