MWS0180SB VP15TF
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

460390

ANSI

MWS0180SB VP15TF

ISO

MWS0180SB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

11

Regular price $100.67 USD
Regular price Sale price $100.67 USD
Sale

EDP

460390

ANSI

MWS0180SB VP15TF

ISO

MWS0180SB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

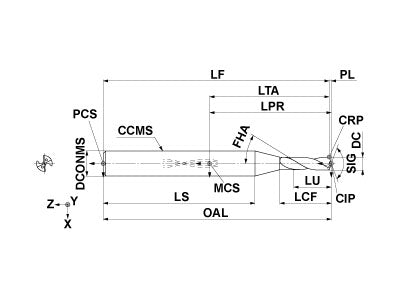

  • Drawings
  • Technical Information
MWS0180SB VP15TF
Coolant
Internal
Hand
Right

Unit: mm

DC
1.8
ULDR
1
LU
2.13
LCF
9.3
OAL
68.3
DCONMS
3
PL
0.3
SIG
140
FHA
30
DC Max
0.014
DC Min
0
TCDCON
h6
ZEFF
2
MWS0180SB VP15TF

Unit: mm

DC
1.8
ULDR
1
LU
2.13
LCF
9.3
OAL
68.3
DCONMS
3
PL
0.3
SIG
140
FHA
30
DC Max
0.014
DC Min
0
TCDCON
h6
ZEFF
2
