EDP

460509

ANSI

MWS0290SB VP15TF

ISO

MWS0290SB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

240

Regular price $100.67 USD
Regular price Sale price $100.67 USD
Sale

EDP

460509

ANSI

MWS0290SB VP15TF

ISO

MWS0290SB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

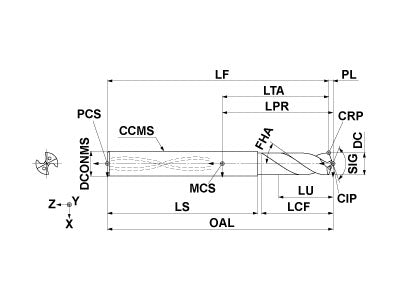

  • Drawings
  • Technical Information
MWS0290SB VP15TF
Coolant
Internal
Hand
Right

Unit: mm

DC
2.9
ULDR
1
LU
3.36
LCF
14.9
OAL
81.5
DCONMS
3
PL
0.5
SIG
145
FHA
30
DC Max
0.014
DC Min
0
TCDCON
h6
ZEFF
2
MWS0290SB VP15TF

Unit: mm

DC
2.9
ULDR
1
LU
3.36
LCF
14.9
OAL
81.5
DCONMS
3
PL
0.5
SIG
145
FHA
30
DC Max
0.014
DC Min
0
TCDCON
h6
ZEFF
2
