diaedge

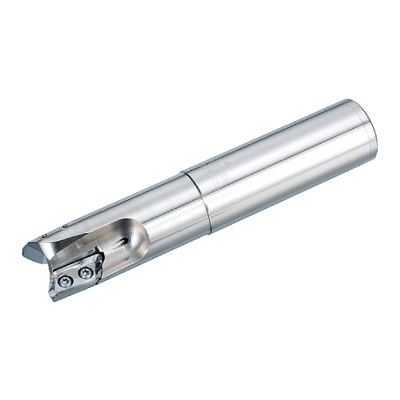

AXD7000UR242SA24SA
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

462070

ANSI

AXD7000UR242SA24SA

ISO

AXD7000UR242SA24SA

P (Steel) N (Non-Ferrous) S (Heat-Resistant)
90 Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

5

Regular price $547.40 USD
Regular price Sale price $547.40 USD
Sale

EDP

462070

ANSI

AXD7000UR242SA24SA

ISO

AXD7000UR242SA24SA

P (Steel) N (Non-Ferrous) S (Heat-Resistant)
90 Accuracy_roughing Application_Face milling Face_milling_near_the_Wall Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

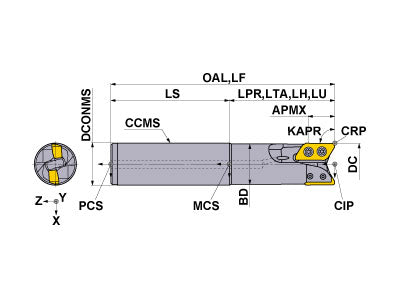

  • Drawings
  • Technical Information
AXD7000UR242SA24SA
Coolant
Internal
Hand
Right

Unit: inch

DC
1.5
LF
7
APMX
0.827
LH
3
OAL
7
DCONMS
1.5
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
RMPX
13
RPMX
36000
WT
3.2
AXD7000UR242SA24SA

Unit: inch

DC
1.5
LF
7
APMX
0.827
LH
3
OAL
7
DCONMS
1.5
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
RMPX
13
RPMX
36000
WT
3.2

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
MK1KS 291805 MK1KS
inventory mark
$4.22
TKY15D 106900 TKY15D
inventory mark
$9.97
TS4SBL 462168 TS4SBL
inventory mark
$9.82
