diaedge
GY2M0400G030R05-GM VP10RT
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

462951

ANSI

GY2M0400G030R05-GM VP10RT

ISO

GY2M0400G030R05-GM VP10RT

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant)

70

Regular price $35.27 USD
Regular price Sale price $35.27 USD
Sale

EDP

462951

ANSI

GY2M0400G030R05-GM VP10RT

ISO

GY2M0400G030R05-GM VP10RT

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant)
View full details
  • Dimensions

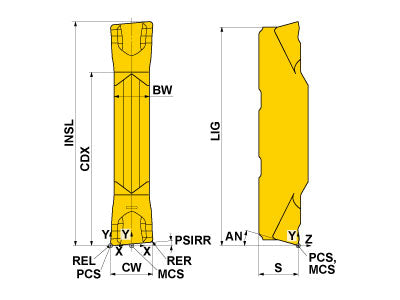

  • Drawings
  • Technical Information
GY2M0400G030R05-GM VP10RT
Hand
Right

Unit: mm

CW
4
REL
0.3
RER
0.3
CDX
24.5
PSIRR
5
CWTOLL
-0.04
CWTOLU
0.04
S
4.5
GY2M0400G030R05-GM VP10RT

Unit: mm

CW
4
REL
0.3
RER
0.3
CDX
24.5
PSIRR
5
CWTOLL
-0.04
CWTOLU
0.04
S
4.5
