EDP

474564

ANSI

MWS0110X25DB VP15TF

ISO

MWS0110X25DB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

16

Regular price $435.83 USD
Regular price Sale price $435.83 USD
Sale

EDP

474564

ANSI

MWS0110X25DB VP15TF

ISO

MWS0110X25DB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

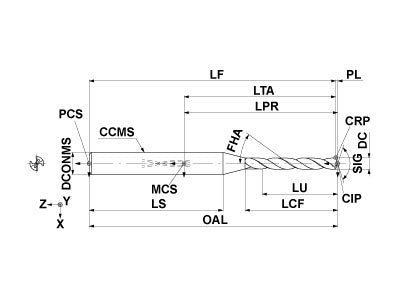

  • Drawings
  • Technical Information
MWS0110X25DB VP15TF
Coolant
Internal
Hand
Right

Unit: mm

DC
1.1
ULDR
25
LU
27.73
LCF
31.2
OAL
66.2
DCONMS
3
PL
0.2
SIG
135
FHA
30
DC Max
0
DC Min
-0.014
TCDCON
h6
ZEFF
2
MWS0110X25DB VP15TF

Unit: mm

DC
1.1
ULDR
25
LU
27.73
LCF
31.2
OAL
66.2
DCONMS
3
PL
0.2
SIG
135
FHA
30
DC Max
0
DC Min
-0.014
TCDCON
h6
ZEFF
2
