EDP
474601
ANSI
MWS0130X25DB VP15TF
ISO
MWS0130X25DB VP15TF
![P (Steel)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-P.png?v=100455598971133347731700003449)
![M (Stainless)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-M.png?v=180646633914269519611700003449)
![K (Cast Iron)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-K.png?v=179829309681585967941700003448)
![N (Non-Ferrous)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-N.png?v=159995307732735548301700003449)
![S (Heat-Resistant)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-S.png?v=30775661030167115161700003450)
Stock
26
Price
Regular price
$470.70 USD
Regular price
Sale price
$470.70 USD
Unit price
/
per
EDP
474601
ANSI
MWS0130X25DB VP15TF
ISO
MWS0130X25DB VP15TF
![P (Steel)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-P.png?v=100455598971133347731700003449)
![M (Stainless)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-M.png?v=180646633914269519611700003449)
![K (Cast Iron)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-K.png?v=179829309681585967941700003448)
![N (Non-Ferrous)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-N.png?v=159995307732735548301700003449)
![S (Heat-Resistant)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-S.png?v=30775661030167115161700003450)
Change the number in sums of 1s.
Couldn't load pickup availability
![MWS0130X25DB VP15TF](http://mmusec.mmc-carbide.com/cdn/shop/files/DRLFSS_MI_MWS_MMSS_838c992f-94ce-429b-9f8e-f640744d0e4b.png?v=1724575217&width=1445)
![MWS0130X25DB VP15TF](http://mmusec.mmc-carbide.com/cdn/shop/files/DRLFSS_MI_MWS_MMSS_3_73711f0f-1557-417a-b273-a766587c0d95.jpg?v=1724575217&width=1445)
- Dimensions
- Features
- Drawings
- Technical Information
![MWS0130X25DB VP15TF](http://mmusec.mmc-carbide.com/cdn/shop/files/DRLFSS_MI_MWS_MMSS_3_73711f0f-1557-417a-b273-a766587c0d95.jpg?v=1724575217&width=416)
Coolant
Internal
Hand
Right

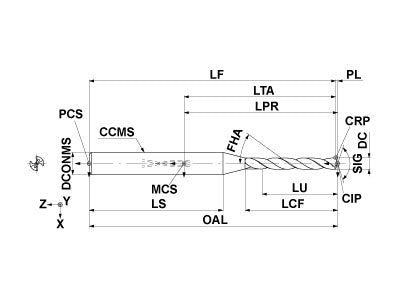

Unit: mm
DC
1.3
ULDR
25
LU
32.77
LCF
36.3
OAL
74.3
DCONMS
3
PL
0.3
SIG
135
FHA
30
DC Max
0
DC Min
-0.014
TCDCON
h6
ZEFF
2
![MWS0130X25DB VP15TF](http://mmusec.mmc-carbide.com/cdn/shop/files/DRLFSS_MI_MWS_MMSS_3_73711f0f-1557-417a-b273-a766587c0d95.jpg?v=1724575217&width=416)
Unit: mm
DC
1.3
ULDR
25
LU
32.77
LCF
36.3
OAL
74.3
DCONMS
3
PL
0.3
SIG
135
FHA
30
DC Max
0
DC Min
-0.014
TCDCON
h6
ZEFF
2
For high accuracy and efficient drilling of steels, carbon steels and difficult-to-cut materials.
