diaedge
MWS0180X25DB VP15TF
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

474708

ANSI

MWS0180X25DB VP15TF

ISO

MWS0180X25DB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

7

Regular price $470.70 USD
Regular price Sale price $470.70 USD
Sale

EDP

474708

ANSI

MWS0180X25DB VP15TF

ISO

MWS0180X25DB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

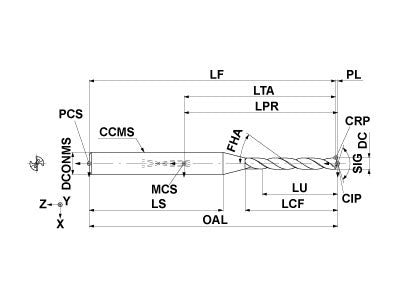

  • Drawings
  • Technical Information
MWS0180X25DB VP15TF
Coolant
Internal
Hand
Right

Unit: mm

DC
1.8
ULDR
25
LU
45.37
LCF
50.4
OAL
94.4
DCONMS
3
PL
0.4
SIG
135
FHA
30
DC Max
0
DC Min
-0.014
TCDCON
h6
ZEFF
2
MWS0180X25DB VP15TF

Unit: mm

DC
1.8
ULDR
25
LU
45.37
LCF
50.4
OAL
94.4
DCONMS
3
PL
0.4
SIG
135
FHA
30
DC Max
0
DC Min
-0.014
TCDCON
h6
ZEFF
2
