EDP

475161

ANSI

MWS0210X30DB VP15TF

ISO

MWS0210X30DB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

5

Regular price $521.02 USD
Regular price Sale price $521.02 USD
Sale

EDP

475161

ANSI

MWS0210X30DB VP15TF

ISO

MWS0210X30DB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

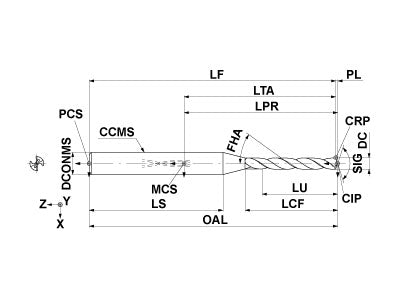

  • Drawings
  • Technical Information
MWS0210X30DB VP15TF
Coolant
Internal
Hand
Right

Unit: mm

DC
2.1
ULDR
30
LU
63.38
LCF
69.4
OAL
118.4
DCONMS
3
PL
0.4
SIG
140
FHA
30
DC Max
0
DC Min
-0.014
TCDCON
h6
ZEFF
2
MWS0210X30DB VP15TF

Unit: mm

DC
2.1
ULDR
30
LU
63.38
LCF
69.4
OAL
118.4
DCONMS
3
PL
0.4
SIG
140
FHA
30
DC Max
0
DC Min
-0.014
TCDCON
h6
ZEFF
2
