diaedge
MWS0280X30DB VP15TF
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

475305

ANSI

MWS0280X30DB VP15TF

ISO

MWS0280X30DB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

3

Regular price $482.43 USD
Regular price Sale price $482.43 USD
Sale

EDP

475305

ANSI

MWS0280X30DB VP15TF

ISO

MWS0280X30DB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

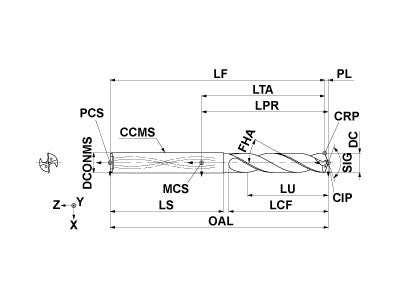

  • Drawings
  • Technical Information
MWS0280X30DB VP15TF
Coolant
Internal
Hand
Right

Unit: mm

DC
2.8
ULDR
30
LU
84.51
LCF
92.5
OAL
132.5
DCONMS
3
PL
0.5
SIG
140
FHA
30
DC Max
0
DC Min
-0.014
TCDCON
h6
ZEFF
2
MWS0280X30DB VP15TF

Unit: mm

DC
2.8
ULDR
30
LU
84.51
LCF
92.5
OAL
132.5
DCONMS
3
PL
0.5
SIG
140
FHA
30
DC Max
0
DC Min
-0.014
TCDCON
h6
ZEFF
2
