EDP

486258

ANSI

MWS0235SB VP15TF

ISO

MWS0235SB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

87

Regular price $100.67 USD
Regular price Sale price $100.67 USD
Sale

EDP

486258

ANSI

MWS0235SB VP15TF

ISO

MWS0235SB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

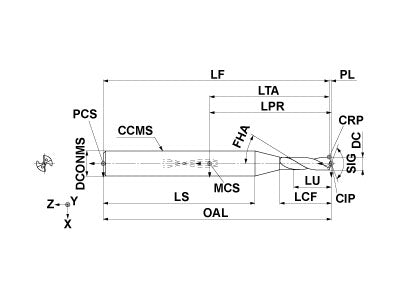

  • Drawings
  • Technical Information
MWS0235SB VP15TF
Coolant
Internal
Hand
Right

Unit: mm

DC
2.35
ULDR
1
LU
2.72
LCF
12
OAL
74.4
DCONMS
3
PL
0.4
SIG
145
FHA
30
DC Max
0.014
DC Min
0
TCDCON
h6
ZEFF
2
MWS0235SB VP15TF

Unit: mm

DC
2.35
ULDR
1
LU
2.72
LCF
12
OAL
74.4
DCONMS
3
PL
0.4
SIG
145
FHA
30
DC Max
0.014
DC Min
0
TCDCON
h6
ZEFF
2
