diaedge
CB04RS-01B TF15
Skip to product information

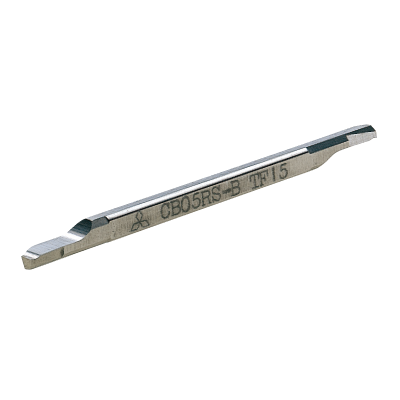

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

492156

ANSI

CB04RS-01B TF15

ISO

CB04RS-01B TF15

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous)

12

Regular price $50.77 USD
Regular price Sale price $50.77 USD
Sale

EDP

492156

ANSI

CB04RS-01B TF15

ISO

CB04RS-01B TF15

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous)
View full details
  • Dimensions
  • Features

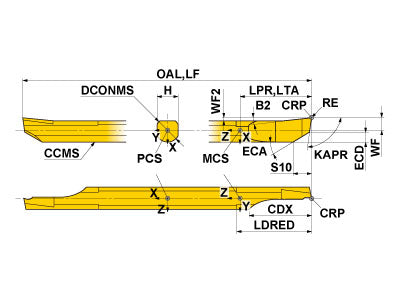

  • Drawings
  • Technical Information
CB04RS-01B TF15
Coolant
External
Hand
Right

Unit: mm

RE
0.1
CDX
10
DMIN
4.2
DCONMS
4
LF
60
LDRED
12
WF
2
WF2
0.45
H
3.6
CB04RS-01B TF15

Unit: mm

RE
0.1
CDX
10
DMIN
4.2
DCONMS
4
LF
60
LDRED
12
WF
2
WF2
0.45
H
3.6

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
RBH2240N 297721 RBH2240N
inventory mark
$182.64
RBH1640N 297553 RBH1640N
inventory mark
$127.84
RBH19040N 297609 RBH19040N
inventory mark
$146.10
RBH2540N 297781 RBH2540N
inventory mark
$200.92
RBH16252A 347709 RBH16252A
inventory mark
$200.92
RBH10252A 347565 RBH10252A
inventory mark
$122.59
RBH2040N 297668 RBH2040N
inventory mark
$164.39
