diaedge

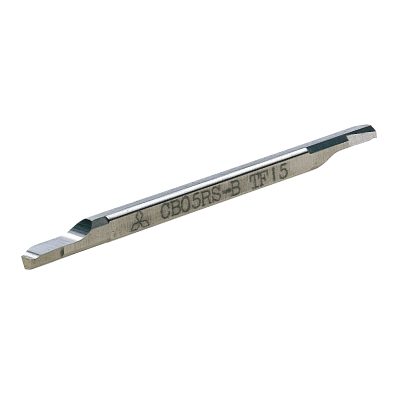

CB04RS-01B VP15TF
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

492287

ANSI

VP15TF

ISO

CB04RS-01B VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous)

20

Regular price $71.18 USD
Regular price Sale price $71.18 USD
Sale

EDP

492287

ANSI

VP15TF

ISO

CB04RS-01B VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous)
View full details
  • Dimensions
  • Features

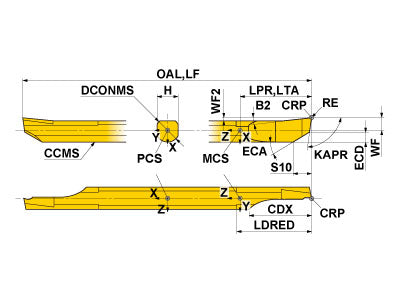

  • Drawings
  • Technical Information
CB04RS-01B VP15TF
Coolant
External
Hand
Right

Unit: mm

RE
0.1
CDX
10
DMIN
4.2
DCONMS
4
LF
60
LDRED
12
WF
2
WF2
0.45
H
3.6
CB04RS-01B VP15TF

Unit: mm

RE
0.1
CDX
10
DMIN
4.2
DCONMS
4
LF
60
LDRED
12
WF
2
WF2
0.45
H
3.6
