EDP

494303

ANSI

MSMHZD/5/64

ISO

MSMHZDD5/64

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant)

35

Regular price $63.33 USD
Regular price Sale price $63.33 USD
Sale

EDP

494303

ANSI

MSMHZD/5/64

ISO

MSMHZDD5/64

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

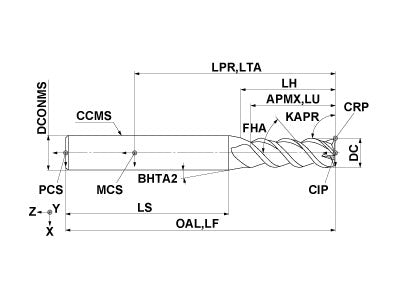

  • Drawings
  • Technical Information
MSMHZDD5/64
Coolant
External
Hand
Right

Unit: inch

DC
0.0781
APMX
0.156
LU
0.156
LH
0.172
OAL
2
DCONMS
0.25
BHTA2
15
FHA
45.0
ZEFP
3
ZEFF
3
MSMHZDD5/64

Unit: inch

DC
0.0781
APMX
0.156
LU
0.156
LH
0.172
OAL
2
DCONMS
0.25
BHTA2
15
FHA
45.0
ZEFP
3
ZEFF
3
