MSMHZDD7/64
Skip to product information

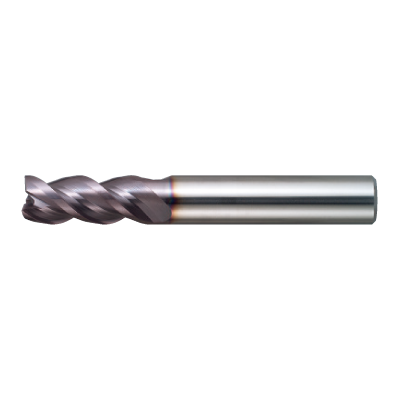

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

494320

ANSI

MSMHZD/7/64

ISO

MSMHZDD7/64

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant)

23

Regular price $80.69 USD
Regular price Sale price $80.69 USD
Sale

EDP

494320

ANSI

MSMHZD/7/64

ISO

MSMHZDD7/64

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

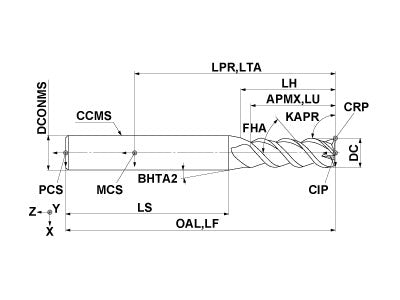

  • Drawings
  • Technical Information
MSMHZDD7/64
Coolant
External
Hand
Right

Unit: inch

DC
0.1094
APMX
0.25
LU
0.25
LH
0.285
OAL
2
DCONMS
0.25
BHTA2
15
FHA
45.0
ZEFP
3
ZEFF
3
MSMHZDD7/64

Unit: inch

DC
0.1094
APMX
0.25
LU
0.25
LH
0.285
OAL
2
DCONMS
0.25
BHTA2
15
FHA
45.0
ZEFP
3
ZEFF
3
