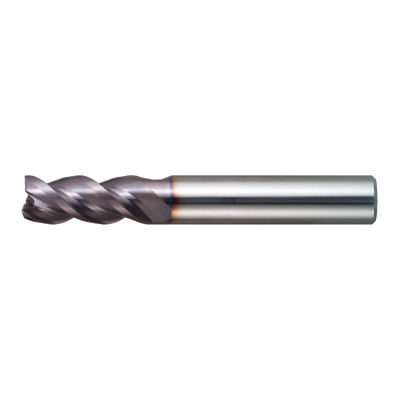

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

494338

ANSI

MSMHZD/1/8

ISO

MSMHZDD1/8

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant)

82

Regular price $80.40 USD
Regular price Sale price $80.40 USD
Sale

EDP

494338

ANSI

MSMHZD/1/8

ISO

MSMHZDD1/8

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

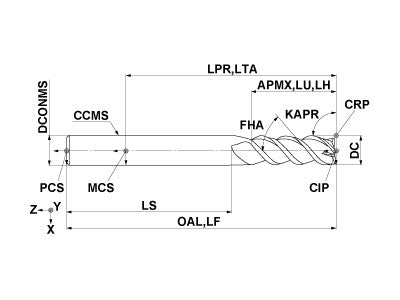

  • Drawings
  • Technical Information
MSMHZDD1/8
Coolant
External
Hand
Right

Unit: inch

DC
0.125
APMX
0.313
LU
0.313
LH
0.36
OAL
2
DCONMS
0.25
BHTA2
15
FHA
45.0
ZEFP
3
ZEFF
3
MSMHZDD1/8

Unit: inch

DC
0.125
APMX
0.313
LU
0.313
LH
0.36
OAL
2
DCONMS
0.25
BHTA2
15
FHA
45.0
ZEFP
3
ZEFF
3
