diaedge
MSMHZDD3/16
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

494354

ANSI

MSMHZD/3/16

ISO

MSMHZDD3/16

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant)

24

Regular price $103.11 USD
Regular price Sale price $103.11 USD
Sale

EDP

494354

ANSI

MSMHZD/3/16

ISO

MSMHZDD3/16

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

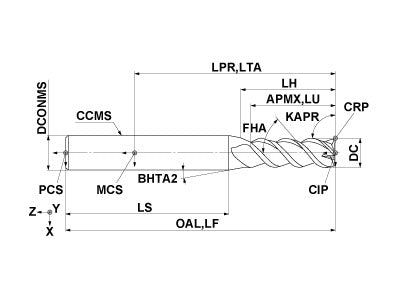

  • Drawings
  • Technical Information
MSMHZDD3/16
Coolant
External
Hand
Right

Unit: inch

DC
0.1875
APMX
0.406
LU
0.406
LH
0.453
OAL
2
DCONMS
0.25
BHTA2
15
FHA
45.0
ZEFP
3
ZEFF
3
MSMHZDD3/16

Unit: inch

DC
0.1875
APMX
0.406
LU
0.406
LH
0.453
OAL
2
DCONMS
0.25
BHTA2
15
FHA
45.0
ZEFP
3
ZEFF
3
