MSMHZDD7/32
Skip to product information

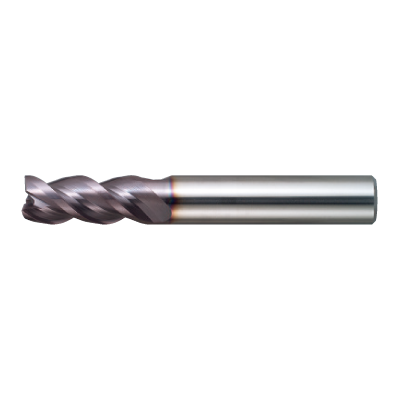

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

494362

ANSI

MSMHZD/7/32

ISO

MSMHZDD7/32

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant)

179

Regular price $114.51 USD
Regular price Sale price $114.51 USD
Sale

EDP

494362

ANSI

MSMHZD/7/32

ISO

MSMHZDD7/32

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

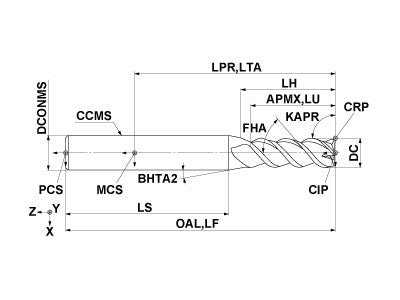

  • Drawings
  • Technical Information
MSMHZDD7/32
Coolant
External
Hand
Right

Unit: inch

DC
0.2188
APMX
0.406
LU
0.406
LH
0.453
OAL
2
DCONMS
0.25
BHTA2
15
FHA
45.0
ZEFP
3
ZEFF
3
MSMHZDD7/32

Unit: inch

DC
0.2188
APMX
0.406
LU
0.406
LH
0.453
OAL
2
DCONMS
0.25
BHTA2
15
FHA
45.0
ZEFP
3
ZEFF
3
