diaedge
MSMHZDD9/32
Skip to product information

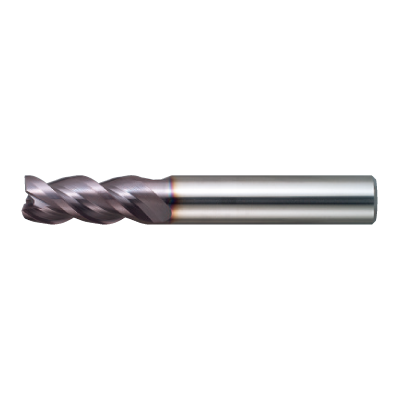

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

494389

ANSI

MSMHZD/9/32

ISO

MSMHZDD9/32

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant)

22

Regular price $137.21 USD
Regular price Sale price $137.21 USD
Sale

EDP

494389

ANSI

MSMHZD/9/32

ISO

MSMHZDD9/32

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

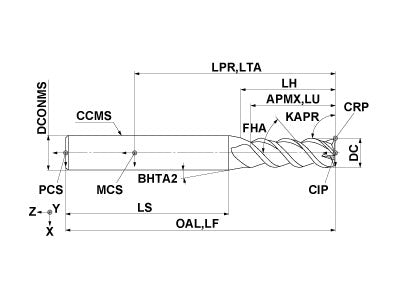

  • Drawings
  • Technical Information
MSMHZDD9/32
Coolant
External
Hand
Right

Unit: inch

DC
0.2813
APMX
0.625
LU
0.625
LH
0.7
OAL
2.5
DCONMS
0.375
BHTA2
15
FHA
45.0
ZEFP
3
ZEFF
3
MSMHZDD9/32

Unit: inch

DC
0.2813
APMX
0.625
LU
0.625
LH
0.7
OAL
2.5
DCONMS
0.375
BHTA2
15
FHA
45.0
ZEFP
3
ZEFF
3
